Windows Encrypted File System basics
BitLocker is great, but is primarily useful for preventing tampering when the system is offline. Once your system is online, a sufficiently privileged user could write to or read from anywhere on the disk. The Encrypted File System (EFS) exists to mitigate this.
EFS, a capability of NTFS (since Windows 2000) allows you to mark files or directories for transparent encryption.
This is not to be confused with Windows Personal Data Encryption, an Enterprise-edition feature tied to Windows Hello for Business introduced with Windows 11, version 24H2. PDE is similar, requires Windows 11 Enterprise (e.g., M365 E3/E5) and uses WHfB keypairs rather than user certificates (and thus requires Entra join and Windows Hello logon, and thus doesn’t work via RDP).
When you first use EFS, Windows generates a RSA keypair saved on disk as a certificate in the User\My certificate store. It’s unlocked when you log on (with your password).
CAUTION!! This means that if your password is reset (e.g., an ‘unkind’ lusrmgr.mmc reset, or PowerShell) you may lose access to the private key! Make a backup of the private key and/or be sure you can restore encrypted files from a backup before storing anything important with EFS!

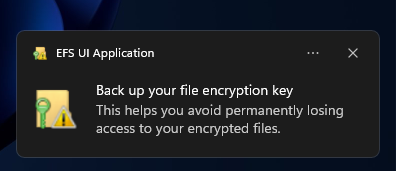

Again, as Windows will tell you, BACK UP YOUR ENCRYPTION KEY before storing anything important in EFS-encrypted files!
So, in essence, EFS is a NTFS/Windows syscall feature that transparently (to user/applications) decrypts entire files at read time so they are never directly accessible on disk without a keypair stored in the user’s certificate store.
It is likely possible to get at these files without the system online/without having access to the user profile (see this post on tinyapps.org) but it is obviously much more difficult to do so than if they were sitting on disk in plaintext.
This is not to be confused with two other Windows encryption features that are similar, but do not do exactly the same thing:
- Personal Data Encryption is a Windows Enterprise-exclusive feature that uses Windows Hello for Business for authentication (it does not generate a separate keypair, and it’s easier to recover data thanks to WHfB’s cloud authorization)
- BitLocker is a standard Windows feature that encrypts the drive itself. When a drive is encrypted with BitLocker, the entire drive is “unlocked” at boot, similarly to LUKS or ZFS native encryption on a Linux system (and unlike EFS, which transparently decrypts files as they’re read).
EFS encryption doesn’t hammer the computer; on a Ryzen 5 3500U running Windows 11 24H2 I saw about 5% CPU and 12 MB/s of disk from LSASS (highly scientific monitoring with Task Manager) after toggling the property on a ~3 GiB directory of small files.
Encrypt a directory from Explorer
To toggle file encryption for a specific file or directory on a NTFS volume in Windows 10/11 from the GUI:

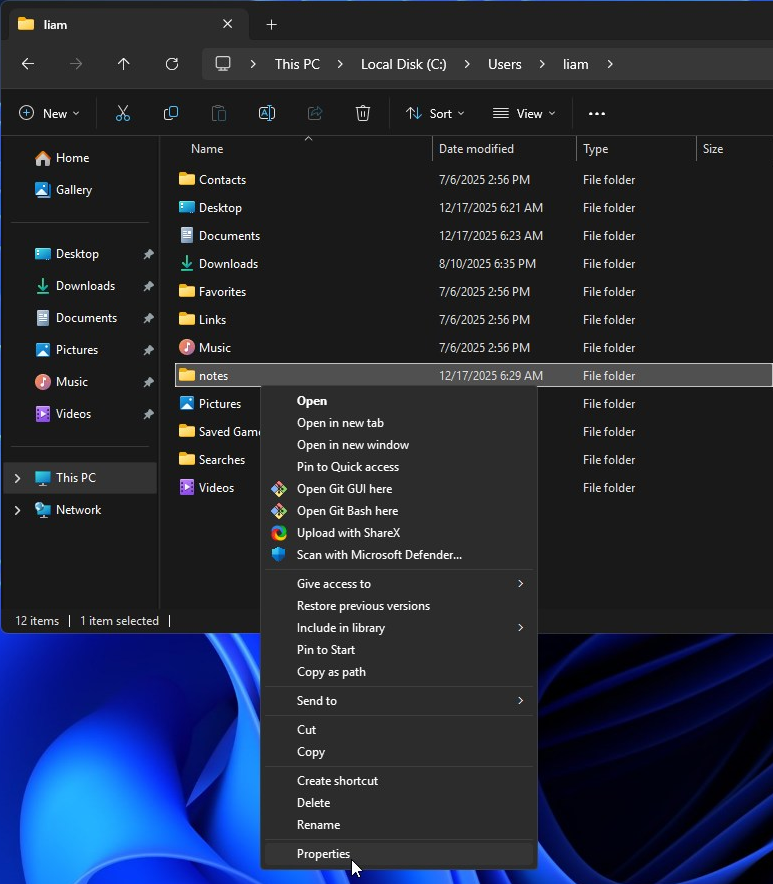

Right-click an item, and click Properties in the context menu:

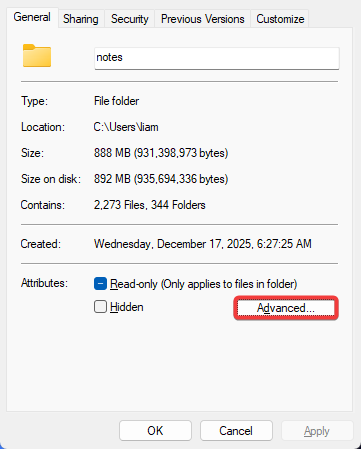

In the Properties menu, click Advanced:

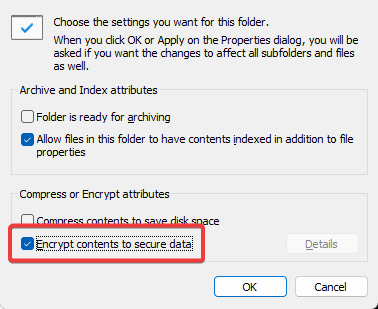

Then, under “Advanced Attributes”, check the “encrypt contents to secure data” option and click OK (in the Advanced window, and on the Properties window).

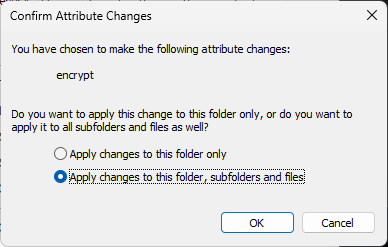

Confirm your changes. Select your desired recursion setting.

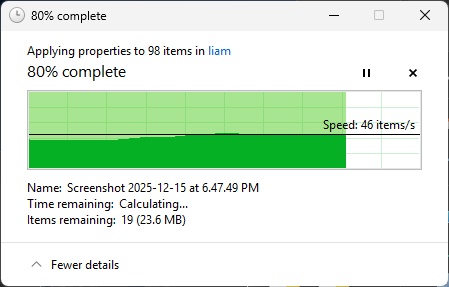

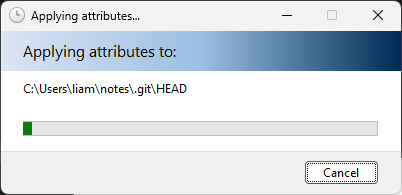

Then, Windows will encrypt the directory. This may take a while depending on your machine and the directory’s contents.
That’s it! Encryption is now enabled.

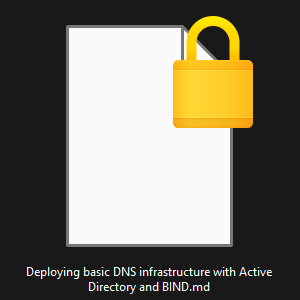

Once EFS has been toggled, items in the directory will show a special ’locked’ icon, e.g.:
Otherwise, encryption is transparent, and handled by the EFS subsystem, which operates in the context of LSASS.

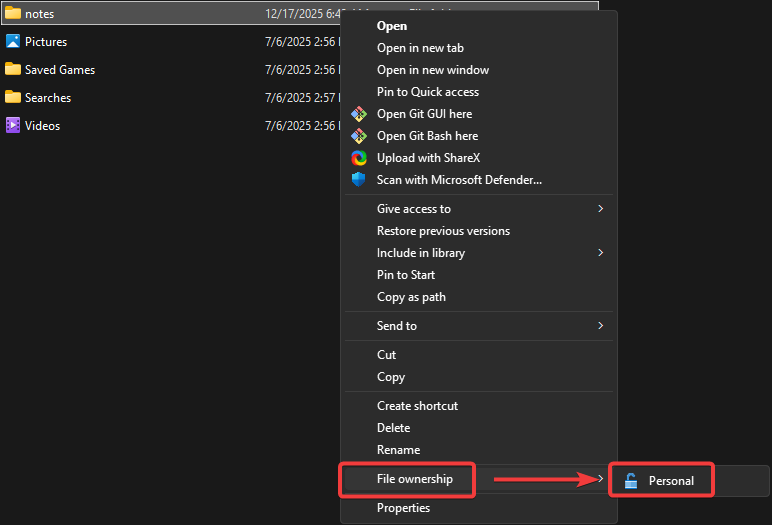

To decrypt the directory, do the same thing but uncheck the ’encrypt contents’ box. Alternatively, you can quickly decrypt a directory or file from the Explorer context menu:
cipher CLI utility
You can also encrypt files or directories with the cipher utility.
cipher will list items in a directory, and their encryption status. Use the /? parameter for help.
cipher /E will encrypt a file or directory (if you just encrypt a directory with /E, only new items will be encrypted). **If you want to recursively encrypt a directory, use cipher /E /S.
Encryption
PS C:\Users\liam> cipher /e notes
Encrypting files in C:\Users\liam\
notes [OK]
1 file(s) [or directorie(s)] within 1 directorie(s) were encrypted.
PS C:\Users\liam> cipher
Listing C:\Users\liam\
New files added to this directory will not be encrypted.
U Contacts
U Desktop
U Documents
U Downloads
U Favorites
U Links
U Music
E notes
U Pictures
U Saved Games
U Searches
U Videos
PS C:\Users\liam> sl notes
PS C:\Users\liam\notes> cipher
Listing C:\Users\liam\notes\
New files added to this directory will be encrypted.
U .$opnsense-carp-one-ip-lab.png.bkp
U .gitignore
U .obsidian
U 802.1d 802.1w refresher.md
U Books to read.md
/E Encrypts the specified files or directories. Directories will be
marked so that files added afterward will be encrypted. The
encrypted file could become decrypted when it is modified if the
parent directory is not encrypted. It is recommended that you
encrypt the file and the parent directory.
Recursive operations
The /S parameter tells cipher to perform the given operation recursively.
PS C:\Users\liam> cipher /E /S:notes
Setting the directory notes to encrypt new files [OK]
Encrypting files in C:\Users\liam\notes\
.$opnsense-carp-one-ip-lab.png.bkp [OK]
.gitignore [OK]
.obsidian [OK]
802.1d 802.1w refresher.md [OK]
Encrypting files in C:\Users\liam\notes\.git\
config [OK]
description [OK]
HEAD [OK]
hooks [OK]
index [OK]
info [OK]
logs [OK]
objects [OK]
packed-refs [OK]
refs [OK]
-- snip --
2627 file(s) [or directorie(s)] within 346 directorie(s) were encrypted.
Converting files from plaintext to ciphertext may leave sections of old
plaintext on the disk volume(s). It is recommended to use command
CIPHER /W:directory to clean up the disk after all converting is done.
You should heed the warning at the end of a cipher /E /S:dir run and run cipher /W:dir afterwards to ensure no remnants of plaintext files are left on disk.
/W Removes data from available unused disk space on the entire
volume. If this option is chosen, all other options are ignored.
The directory specified can be anywhere in a local volume. If it
is a mount point or points to a directory in another volume, the
data on that volume will be removed.
Decryption
To decrypt a file or directory, use cipher /D. This can, of course, be combined with cipher /S:dir for recursive decryption.
PS C:\Users\liam> cipher /D /S:notes
-- snip --
2627 file(s) [or directorie(s)] within 346 directorie(s) were decrypted.
Managing keys

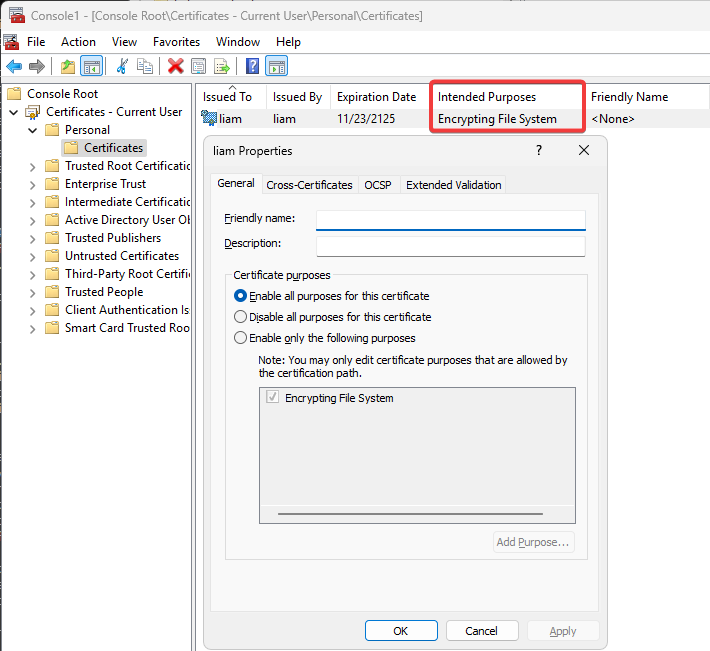

The certificate used by EFS is stored in the Current User\Personal (My) certificate store. Windows always uses the most recent certificate for “new” EFS operations (e.g., writing a new encrypted file). Existing files retain their original FEK until ’touched’ (e.g., /U is run.)
PS C:\Users\liam> ls Cert:\CurrentUser\My
PSParentPath: Microsoft.PowerShell.Security\Certificate::CurrentUser\My
Thumbprint Subject EnhancedKeyUsageList
---------- ------- --------------------
67767A40FBB66045B8A10386CBD5CB527573F23D CN=liam Encrypting File System
To print your active (default) EFS cert’s thumbprint:
PS C:\Users\liam> cipher /y
EFS certificate thumbprint for computer PF1K1CRK:
6776 7A40 FBB6 6045 B8A1 0386 CBD5 CB52 7573 F23D
As far as I am aware, there is no supported user-facing way to determine which EFS certificate was used to encrypt a given file.
Rekeying
To update your keypair, run cipher /K to generate a new one, then cipher /U to update all the encrypted files on disk with the new encryption key.
PS C:\Users\liam> ls Cert:\CurrentUser\My
PSParentPath: Microsoft.PowerShell.Security\Certificate::CurrentUser\My
Thumbprint Subject EnhancedKeyUsageList
---------- ------- --------------------
67767A40FBB66045B8A10386CBD5CB527573F23D CN=liam Encrypting File System
PS C:\Users\liam> cipher /K
EFS certificate thumbprint for computer PF1K1CRK:
1B24 9BE5 759B F0AD FF1E 9CAC D5FE D53F CAF4 A50E
PS C:\Users\liam> ls Cert:\CurrentUser\My
PSParentPath: Microsoft.PowerShell.Security\Certificate::CurrentUser\My
Thumbprint Subject EnhancedKeyUsageList
---------- ------- --------------------
67767A40FBB66045B8A10386CBD5CB527573F23D CN=liam Encrypting File System
1B249BE5759BF0ADFF1E9CACD5FED53FCAF4A50E CN=liam Encrypting File System
PS C:\Users\liam> cipher /U
C:\$Recycle.Bin\S-1-5-21-25087275-3701594579-3890375949-1000\$RNGYPZP.txt: Encryption updated.
-- snip --
You should then be able to remove the previous keypair (certificate).
/K Creates a new certificate and key for use with EFS. If this
option is chosen, all the other options will be ignored.
Note: By default, /K creates a certificate and key that conform
to current group policy. If ECC is specified, a self-signed
certificate will be created with the supplied key size.
/U Tries to touch all the encrypted files on local drives. This will
update user's file encryption key or recovery keys to the current
ones if they are changed. This option does not work with other
options except /N.
/N, since it’s mentioned:
/N This option only works with /U. This will prevent keys being
updated. This is used to find all the encrypted files on the
local drives.
Backing up keys

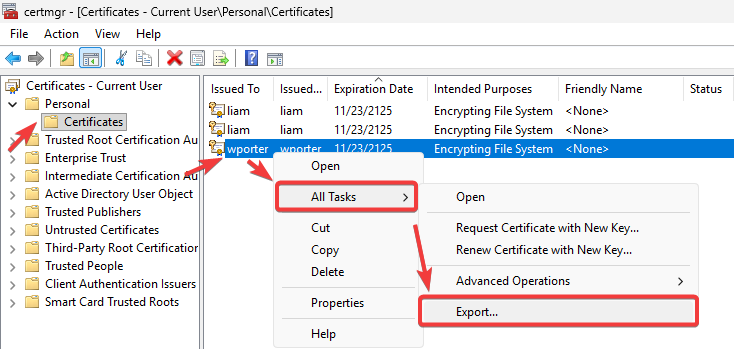

You can export EFS certificates with certlm.msc:

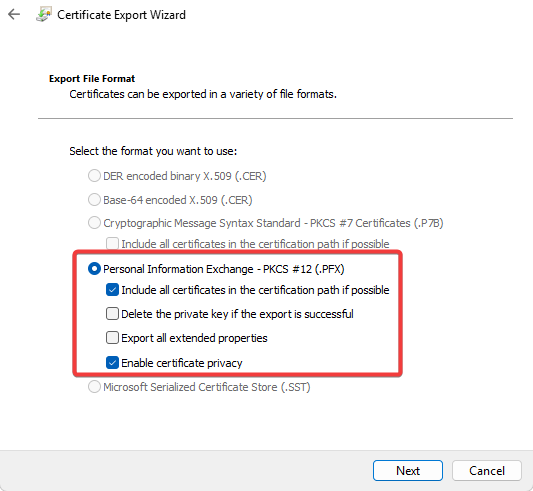

Be sure to export the private key! The public key is useless on its own.

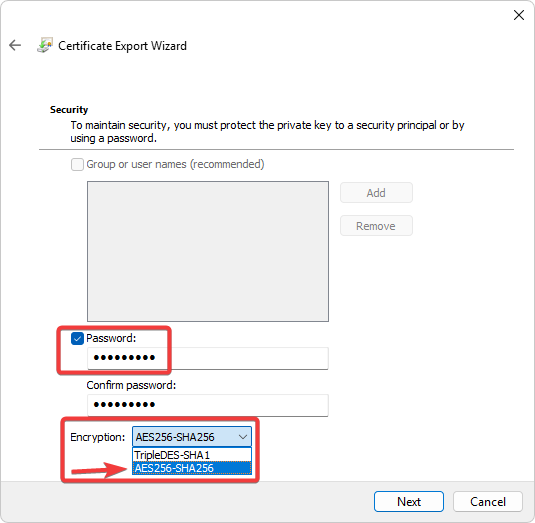

You should encrypt the private key with AES256-SHA256 rather than 3DES/SHA1. 3DES/SHA1 are deprecated and should not be used if at all avoidable as both algorithms are cryptographically insecure.
Data Recovery Agents
The Data Recovery Agent (DRA) is a special EFS keypair that allows an administrator to decrypt EFS-encrypted files if a user’s EFS private key is lost.
This does NOT exist by default on a standalone (workgroup) system utilizing EFS that runs Windows XP or later. If you would like, you can create a separate DRA certificate. This Data Recovery Agent’s public key will be used in addition to the user’s public key to encrypt files so that if the user certificate is lost, their files may be restored.
Files encrypted before a DRA is configured cannot be recovered by that DRA unless they are re-encrypted.
This is NOT associated with the local Administator account and should not be stored on the machine.
You can use the cipher /R option to generate a Recovery Agent certificate:
/R Generates an EFS recovery key and certificate, then writes them
to a .PFX file (containing certificate and private key) and a
.CER file (containing only the certificate). An administrator may
add the contents of the .CER to the EFS recovery policy to create
the recovery key for users, and import the .PFX to recover
individual files. If SMARTCARD is specified, then writes the
recovery key and certificate to a smart card. A .CER file is
generated (containing only the certificate). No .PFX file is
generated.
Note: By default, /R creates an 2048-bit RSA recovery key and
certificate. If ECC is specified, it must be followed by a
key size of 256, 384, or 521.
According to Microsoft, if a Windows system is joined to a domain, the first domain controller’s built-in Administrator profile will contain a domain Data Recovery Agent keypair. However, this information is dated (up to Server 2008) and I have not determined whether it’s accurate for Server 2022/2025 (FL 2016/2025) domains.
This is only stored on the first domain controller and may be exported from the Administrator account’s Personal certificate store.
If that certificate is lost and no additional DRAs are configured, EFS recovery for the domain may be impossible.
